What is a geometric plan?
The geometric plan is the technical basis for legal acts,
public documents and other documents which, according
to the law, certify real estate rights, including
lease agreements, and may also be used to record
a change in the CN database.
For what purposes is a geometric plan made?
The geometric plan shall be drawn up in particular
for the purposes of:
(a) division of immovable property
e.g. subdivision into building plots,
division of the garden ...
b) adjustment of the real estate boundary
e.g. change in the course of the ownership
border between neighbors ...
c) determination of property rights to
real estate
e.g. determination of ownership of land
that does not have a certificate of
ownership in the current operation ...
(d) restoration of the boundaries of the
original parcels or parts thereof
e.g. separation of the original land
from the agricultural cooperative ...
e) focus of the construction on issuing
a building permit
focus on new house, garage ...
f) focus of the construction under construction
e.g. focus of the construction on providing credit ...
(g) mergers of immovable property
e.g. merging several plots into larger units ...
h) granting of rights to a part of real estate -
marking of easement
e.g. the right to cross the land ...
What is the demarcation of a building?
The delineation of the building object is
actually a marking of the spatial position
of the building object in the field on the
basis of the supplied project documentation.
We usually outline the perimeter masonry
of the building on the 1st floor, or the
perimeter of the foundations. The marking
of the spatial position is mostly done
with iron roxors, but it is not a problem
to mark the building directly on the building
benches. The height of the building will be
made by marking the building 0.00 resp.
height dimension according to the customer's
request, e.g. on a wooden peg.
What do I need to delineate a building?
For the processing of the demarcation drawing and thus
also for the demarcation itself, it is necessary
to document the approved project documentation
in written or in electronic form.
If the documentation contains a layout
drawing with coordinates in the state coordinate
system S-JTSK, this will also suffice.
To calculate the coordinates of a building we need:
Installation of the object within the land -
situation of settlement (this information is
also part of the building permit)
Floor plan of the 1st floor of the building (foundations)
What is the demarcation of land?
Demarcation of the boundary of the
land means the transfer of the position
and size of the plot registered in the
cadastral map to the terrain. The
delineation will be performed on the basis
of the Real Estate Cadastre documents:
cadastral map, GP, lists of coordinates,
sketches of original measurements, etc.
What is the result of the demarcation of the land boundary?
The result of the demarcation of the land boundary
is the marked boundary of the plot in the terrain
(wooden pegs, metal pipes, roxorms ...) and a
demarcation protocol verified by an authorized
surveyor and cartographer. The processed
documentation contains the Protocol on the
demarcation of the land boundary and a
graphic representation - a demarcation sketch.

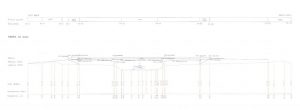

What are profiles?
When designing or orienting the design,
the actual state of the line structures,
the elevation ratios of the terrain can be
determined by means of vertical profiles.
The profile is a section of a vertical plane
with the terrain along the selected line.

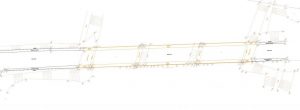

Profile measurement
The longitudinal profile of the line
structure is measured over selected points -
the route axis (route points, points in the
selected station, hectometer ...) using
leveling (trigonometrically) with connection
to the points of the ŠNS, or PPBP.
